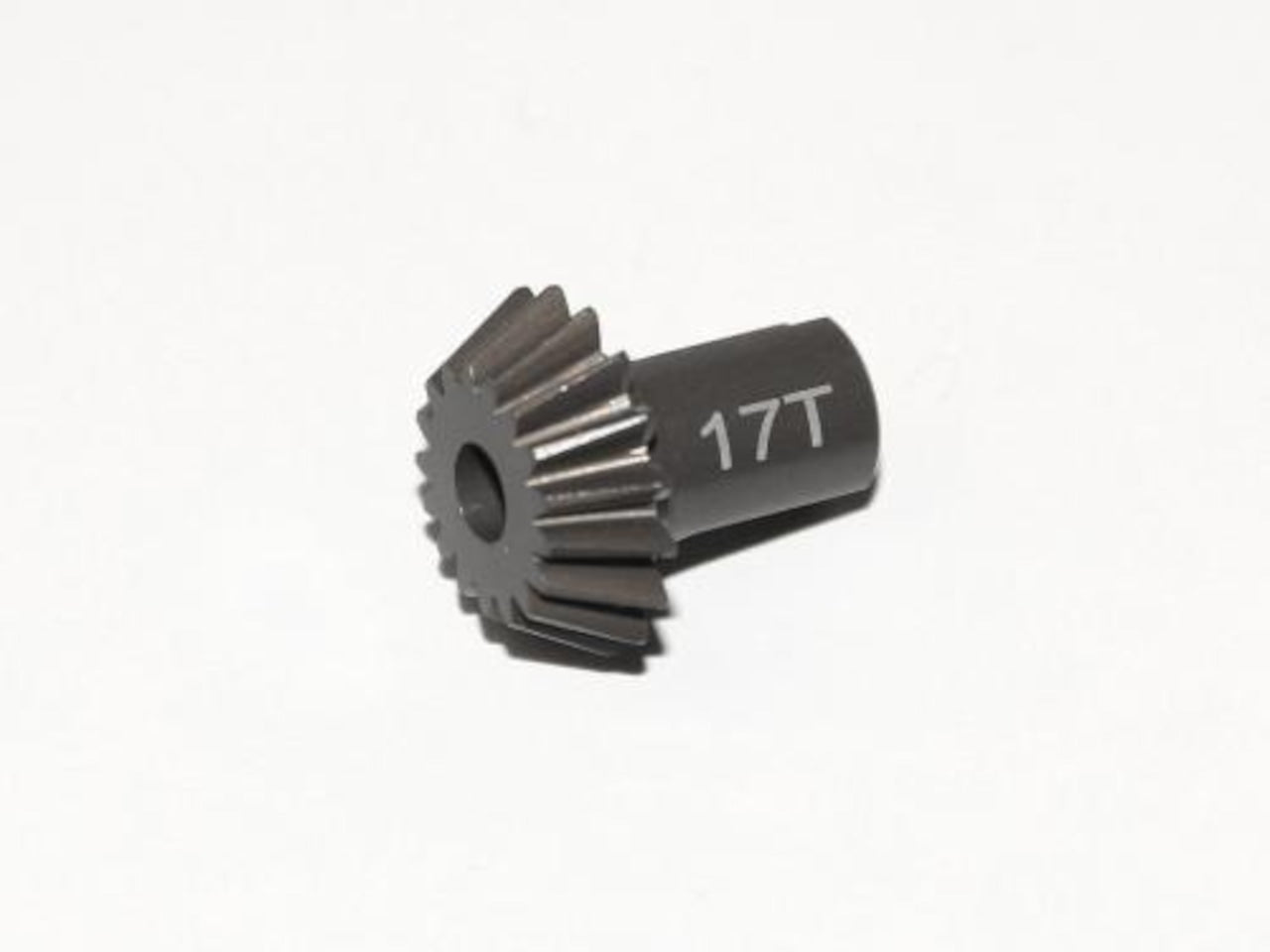

Accelerated bevel gear 17T

〇 Applicable chassis
・Can be used as GRK3 AWD option parts
・Can be used as an optional part for the Global Global Standard Series

〇Applicable parts
・[R31W200] Spur Gear Mount (Aluminum)
・[R31G010] Spur gear mount (resin)

〇 commodity explanation
It is a speed-increasing bevel gear developed for GRK3AWD or GRK Global/Global Standard series (AWD specification).

It is used when adjusting the squeezing ratio by combining with the number of teeth of the front bevel gear.

It can also be used for adjusting the secondary deceleration of RWD specification vehicles.

For gear ratios, please refer to the "Gear ratio list" from the GRK homepage download site. →https://www.r31world.com/download.html

〇Swift reference table for consolidation rate (when rear side bevel gear is replaced with this product)
Standard bevel 16T (R31G007) → 1.06 times
12T forward gear (R31W215) → 1.42 times
11T forward gear (R31W214) → 1.55 times
10T forward gear (R31W213) → 1.70 times

〇 Precautions when installing (for ball differential specifications)
If you are using the (R31G001) ball differential set, you will need to change to the (R31W211) ball differential offset ring gear.


〇 Precautions when installing (when using a solid differential)
[R31W201] GRK Rigid Axle Set and [R31W243] Gear Spacer Set can be used.

*The number of gear spacers used for each bevel gear is described on the [R31W201] GRK Rigid Axle Set product page, so please check it.
