Aluminum Integrated Front Axle

〇 Adaptable chassis and other compatible knuckles
・GRK5
・GRK4
・GS2EVO
・[R31S300] Multi-angle knuckle set or [R31G083] GS2EVORWD front knuckle equipped vehicle

〇 commodity explanation
The long-awaited GRK user's long-awaited lightweight front axle for RWD has arrived!

An aluminum hub integrated axle set that is both light and strong.

GRK4 standard axle body 2.87g, 1.10g (integrated axle body), less than half the weight!
Movement performance is improved by reducing unsprung weight.

Adopts a center lock method that fixes the wheel with the included aluminum 3mm plate washer and plate screw.
In order to reduce the vibration of the front tire, which is one of the most important items for RWD drift, we have focused on the accuracy of the fitting portion.

By replacing the included aluminum spacer, it is possible to change the hub offset from minimum 6.5mm to maximum 8.5mm.

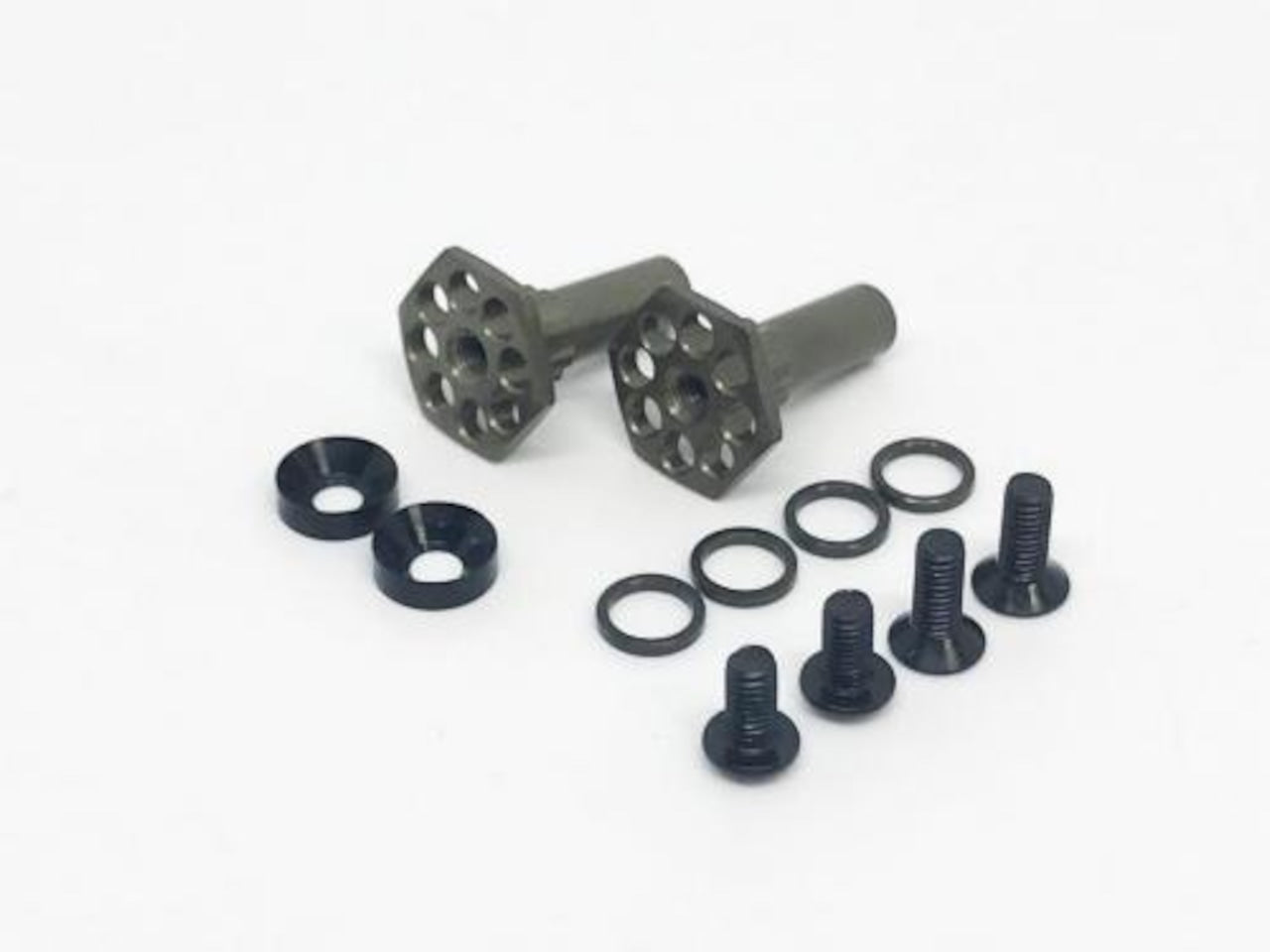

〇 Contents
・ Hub integrated axle body ... 2 pieces
・Spacer for axle (inner diameter 5mm thickness 1mm) … 4 pieces
・M3 countersunk washer S…2
・M3×8mm countersunk screw…2 pieces
・M3×6mm button screw…2 pieces
